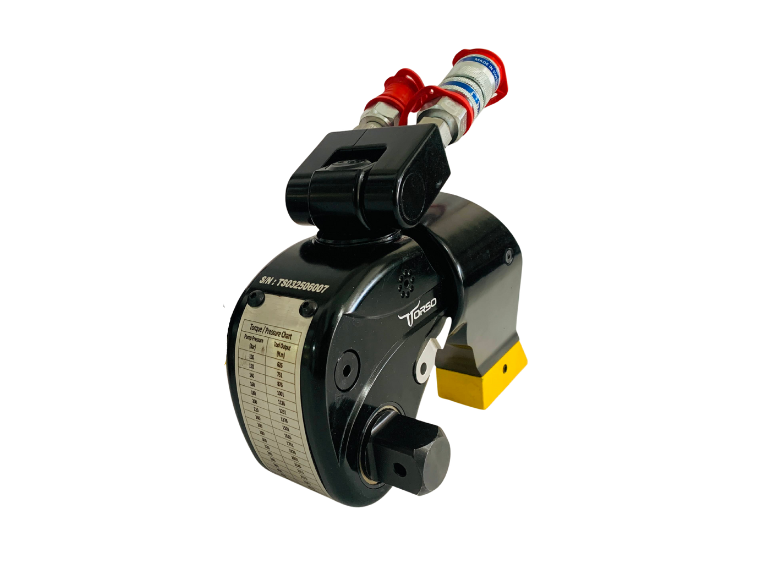

Square Drive Hydraulic Torque Wrenches

TS Series Hydraulic Torque Wrench

Torso TS Series: Lightweight Hydraulic Torque Wrenches

It is used with the pneumatic chipping hammer to knock the tube out of tube sheet. Used to remove the stubs from the tube sheet. Also, used to remove Till wallled/ Light expanded Tubes.

Request a Quote
                                                            TS' Series

Model
Unit
TS-07
TS-1
TS-3
TS-5
TS-8
TS-10
TS-20
TS-25
TS-35
TS-50
Sq. Drive
inch
3/4''
3/4''
1''
1.1/2''
1.1/2''
2.1/2''
2.1/2''
2.1/2''
2.1/2''
2.1/2''
Min. Torque
Nm
112
172
450
740
1078
1450
2719
3472
4866
6925
Max. Torque
Nm
1120
1731
4500
7380
10780
14508
27197
34725
48666
69247
Bolt Size
mm
14-30
16-36
22-48
27-56
30-64
36-72
42-90
48-100
64-120
72-125
Weight
kg
1.8
2.5
4.9
9.5
10.8
14.7
26
35
50
65
                                                              Dimensions

Model
Unit
TS-07
TS-1
TS-3
TS-5
TS-8
TS-10
TS-20
TS-25
TS-35
TS-50
Body Length (L1)
mm
110
144.5
178
213
222
246
305
321
371
376
inch
4.33
5.69
7
8.38
8.74
9.69
12
12.6
14.6
14.8
Overall Length (L2)
mm
139
173
228
274.5
292
317
383
401
465
528
inch
5.47
6.81
8.98
10.8
11.49
12.48
15.08
15.78
18.3
20.78
Tool Width (H1)
mm
42
52
69.5
82.5
92
102
112.5
120
137
162
inch
1.65
2.04
2.74
3.24
3.62
4.01
4.43
4.72
5.39
6.14
Overall Width (H2)
mm
65
75
94
128.5
134
142
183
200
216
226
inch
2.55
2.95
3.7
5.06
5.2
5.6
7.2
7.87
8.5
8.9
Tool Height (H3)
mm
77
95.5
115
149
167
182
220
246
282
291
inch
3.03
3.76
4.53
5.87
6.57
7.16
8.33
9.68
11.1
11.5
Overall Height (H4)
mm
108
136
176
199
217
232
270
297
332
226
inch
4.25
5.35
6.93
7.83
8.54
9.13
10.62
11.69
13.07
12.83
Tool Radius Around Bolt (R1)
mm
21
26.3
34.5
39
47
51
59
66
77
78.8
inch
0.82
1.03
1.36
1.53
1.85
2
2.32
2.59
3.03
3.1
Reaction Reach (R2)
mm
68
85
111.5
140
153
154
186
199
241
295
inch
2.67
3.35
4.39
5.51
6.02
6.06
7.32
7.83
9.48
11.6

The Torso TS Series combines lightweight aluminium construction with exceptional durability to handle the toughest bolting tasks accurately and quickly. Engineered for speed, precision, and user comfort, the Torso TS Series is the ideal choice for professionals seeking reliable, high-performance tools.

Key Features:

  • Internal Reaction Arm Spline for easy positioning and access in tight spaces.
  • Reversible Alloy Steel Square Drive for quick switching between tightening and loosening.
  • 360° x 180° Multi-Directional Swivel with quick-release couplings to prevent hose damage.
  • Ergonomic Design to reduce operator fatigue and strain.
  • High-Strength Aluminium Construction for exceptional durability and long-term performance.
  • Versatile Torque Capacities & Drive Sizes to meet a wide range of bolting needs.
